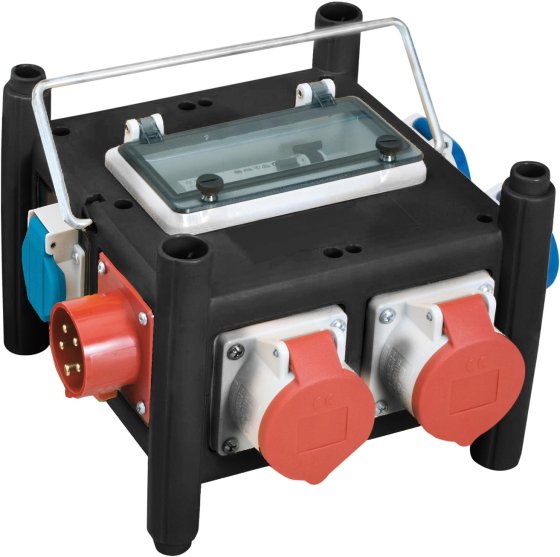

Compact power distributor BSV 3 - FI E/16 IP44

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Power distributors
- Product image
Article number 1153668303
EAN 4007123292141
Article number 1153668303
EAN 4007123292141
Description

Description

  • Stackable, splash-proof housing made from a special rubber compound for continuous load.
  • Sturdy metal carrying handle.
  • 1 RCD circuit breaker and 2 automatic fuses.
  • Earthed sockets with 2 different phases.
  • Feed-plug.
Protected against foreign bodies and splash water
Protected against foreign bodies and splash water

Protection against contact with tools, wires or similar with ? >1.0 mm, protection against foreign bodies with ? > 1.0 mm. As well as protection against splash water from all directions

RCD personal protection switch
RCD personal protection switch

An RCD (residual current circuit breaker) is an electrical protective device that is primarily used to protect against electric shocks. The RCD recognises the difference between the incoming and outgoing current in a circuit and automatically switches off the circuit in the event of a residual current. When used for personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.

Technical data

Technical data

  • Width of product (without packaging): 23 cm
  • Weight of product (without packaging): 2,90 kg
  • Height of product (without packaging): 19 cm
  • Length of product (without packaging): 32 cm
  • Nominal input voltage: 400 V
  • With carrying handle: Yes
  • Housing material: Plastic
  • Number of CEE socket outlets total: 2
  • Number of socket outlets total: 7
  • Degree of protection (IP): IP44
  • Suitable for outdoor area: Yes
  • Number of earthed socket outlets: 5
  • Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
Downloads

Downloads

All products are subject to technical changes
