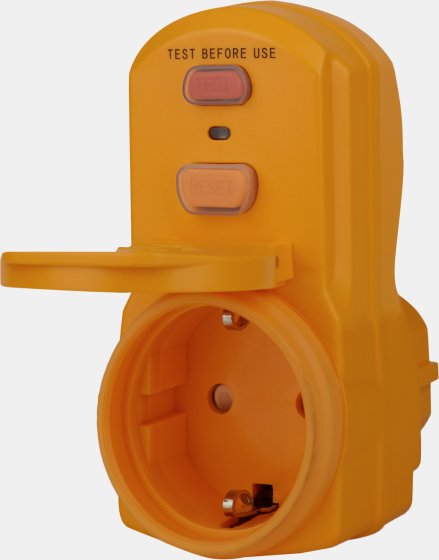

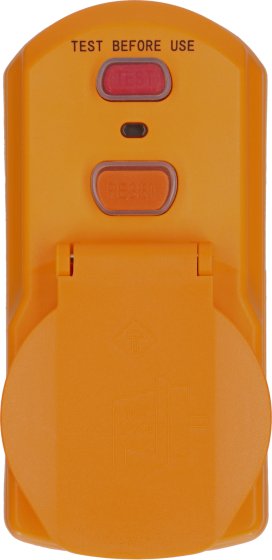

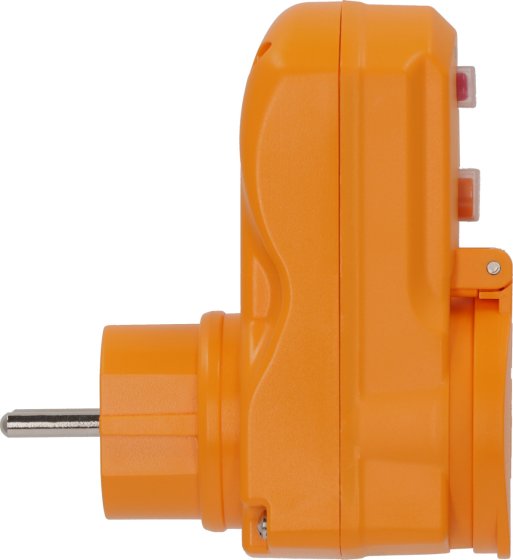

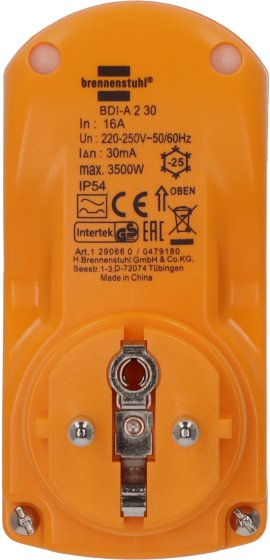

Personal protection adapter BDI-A 2 30 IP54 / personal protection plug for outside (two-pole cut-off, 30mA)

Description

The BDI-A 2 30 human protection adapter from Brennenstuhl in the colour yellow is used to protect against dangerous electric shocks. Thanks to the IP54 protection class, it can be used in outdoor areas and is protected against dust and splash water. Thanks to the personal protection plug, residual currents are detected immediately and disconnected from the mains in a flash. The residual current circuit breaker also convinces with the following features:

• Rated frequency: 50/60 Hz
• Max. switching capacity: 3500 W
• Max. current carrying capacity Current carrying capacity: 16 A
• With increased protection against accidental contact
• Min. ambient temperature: -25 °C
• Max. ambient temperature Ambient temperature: 40 °C

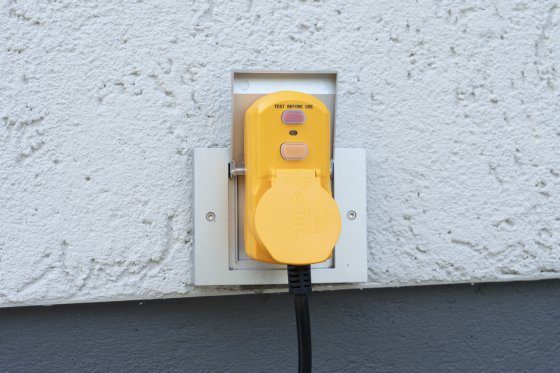

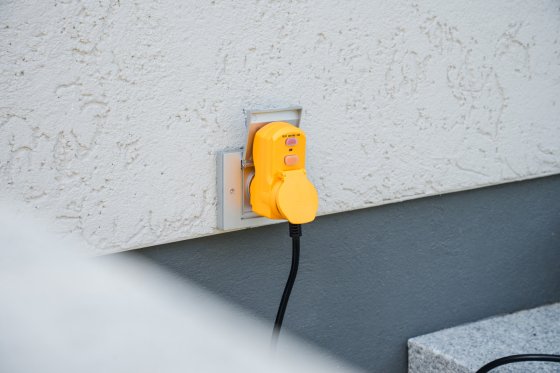

Dust and splash-proof

Protection against contact, protection against dust deposits inside. Also protected against splash water from all directions

RCD personal protection switch

An RCD (residual current circuit breaker) is an electrical protective device that is primarily used to protect against electric shocks. The RCD recognises the difference between the incoming and outgoing current in a circuit and automatically switches off the circuit in the event of a residual current. When used for personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest.
