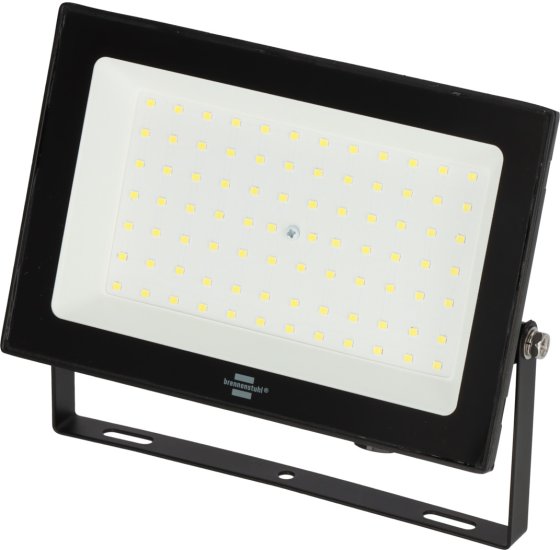

LED Spotlilght EL 7700 W, 7700 lm, 70 W, 20 cm, H05RN-F 3G1.0, IP65
Description
Description
- LED Floodlight with super-bright SMD LEDs and a slim design.
- Easy to install
- Front panel made of safety glass.
- Sturdy, modern aluminum housing.
- Adjustable mounting bracket.
- Includes a 20 cm cable.
- This luminaire contains light sources of energy efficiency class E - 0172640099.
IK08- Impact resistance grade
- The impact resistance rating indicates how well a housing or device is protected against mechanical shocks and impacts
- IK08 means that the device can withstand an impact energy of 5 joules, which corresponds to a blow with a 1.7 kg hammer from a distance of 30 cm
Dust-tight and protected against water jets
- Complete protection against contact and ingress of dust
- Also protected against water jets (nozzle) from any angle
Technical data
Technical data
- Degree of protection (IP): IP65
- Type of lamp: Floodlight
- Luminous flux: 7.700 lm
- Protection class: I
- Impact strength: IK06
- Colour temperature: 6500 K
- Basic colour: black
- Housing material: Metal
- Min. Nominal input voltage: 220 V
- Max. Nominal input voltage: 240 V
- Type of input voltage: Alternating voltage (AC)
- Nominal frequency: 50 Hz
- Cable designation: H05RN-F 3G1,0
- Cable length: 0,20 m
- Cable quality: Rubber-Neoprene
Scope of supply
Scope of supply
EL 7700 LED Wall Spotlight
Downloads
Downloads
All products are subject to technical changes
