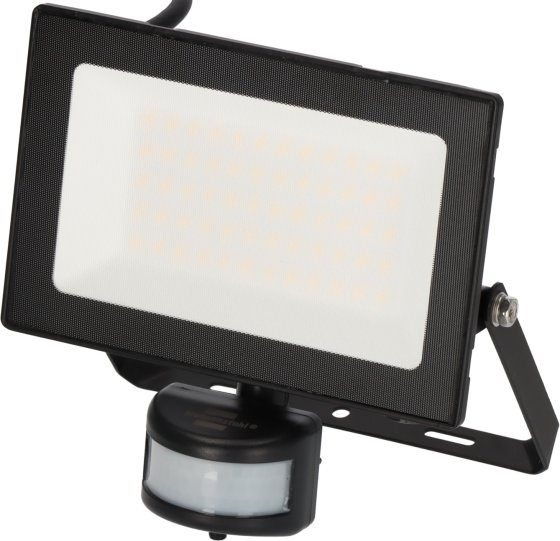

LED Floodlight EL 5500 P with Infrared Motion Sensor, 5500 lm, 50 W, IP44, 20cm H05RN-F 3G1,0, 4000 K
Description
Description
- LED floodlight with super-bright SMD LEDs and a slim design.
- Ideal for automatically illuminating entryways, driveways, or carports, as well as for deterring break-ins and theft.
- Warm, atmospheric light color.
- Infrared motion sensor with continuous horizontal and vertical swivel.
- Detection range up to 10 meters, detection angle approx. 180°.
- On-time adjustable from approx. 10 seconds to approx. 10 minutes.
- User-friendly installation.
- Sturdy, modern aluminum housing.
- Adjustable mounting bracket.
- This luminaire contains light sources of energy efficiency class E - 0172640008.
IK06- Impact resistance grade
- The impact resistance rating indicates how well a housing or device is protected against mechanical shocks and impacts
- IK06 means that the device can withstand an impact energy of 1 joule, which corresponds to an impact of a 0.25 kg mass from a height of 40 cm
Protected against foreign bodies and splash water
- Protection against splash water from all directions
Range of the motion detector
- The maximum range of the motion detector is 10m
Detection angle
- The motion detector detects movements at a detection angle of 180°
Technical data
Technical data
- Degree of protection (IP): IP44
- Type of lamp: Floodlight
- Luminous flux: 5.500 lm
- Protection class: I
- Impact strength: IK06
- Colour temperature: 4000 K
- Basic colour: black
- Housing material: Metal
- Min. Nominal input voltage: 220 V
- Max. Nominal input voltage: 240 V
- Type of input voltage: Alternating voltage (AC)
- Nominal frequency: 50 Hz
- Max. transmission range frontally: 10 m
- Coverage angle horizontal: 180 °
- Min. duty cycle: 10 s
- Max. duty cycle: 10 min
- Cable designation: H05RN-F 3G1,0
- Cable length: 0,20 m
- Cable quality: Rubber-Neoprene
Scope of supply
Scope of supply
EL 5500 P LED Floodlight with Infrared Motion Sensor
Downloads
Downloads
All products are subject to technical changes
