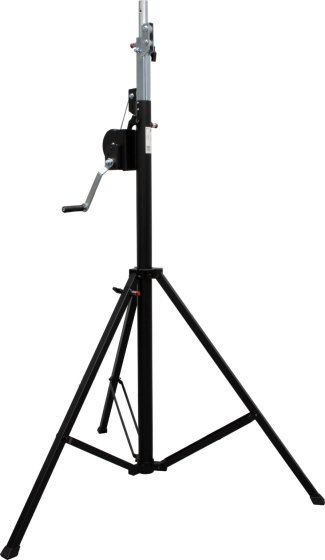

Construction crank tripod ST 410 black

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Accessories & spare parts
- Product image
Article number 1170310050
EAN 4007123316847
  • Very robust crank tripod enables optimum illumination and can be flexibly extended up to 4.10m
  • Compatible with all brennenstuhl® spotlights and also has a standard spigot in accordance with DIN 14640 to accommodate additional panel lights
  • The crank tripod offers a very high load capacity of max. 90 kg
  • The three supports can be extended to different widths and can be extended individually to compensate for unevenness
  • Suitable accessories (not included in the scope of delivery): Tripod crossbar item no. 1172640086 for holding 2 spotlights. The crossbar is suitable for all brennenstuhl® spotlights and additionally equipped with 2 standard spigots according to DIN 14640
Article number 1170310050
EAN 4007123316847
Description

Description

  • Hand crank mechanism with reinforced wire rope.
  • Flexible height adjustment from 1.76m to 4.10m for optimum illumination.
  • The stand is compatible with all brennenstuhl® spotlights and also has a standard spigot in accordance with DIN 14640 to accommodate additional floodlights.
  • Integrated parking brake for additional safety.
  • Maximum load capacity of 90 kg.
  • The 3 supports can be extended to different widths and can be extended individually to compensate for unevenness.
  • Suitable accessories (not included in the scope of delivery): Tripod crossbar item no. 1172640086 for holding 2 spotlights.
Technical data

Technical data

  • Width of product (without packaging): 21 cm
  • Weight of product (without packaging): 21 kg
  • Height of product (without packaging): 15 cm
  • Length of product (without packaging): 173 cm
Scope of supply

Scope of supply

Construction crank tripod ST 410, 1x DIN standard pin, 1x mounting plate

Downloads

Downloads

Accessories

Accessories

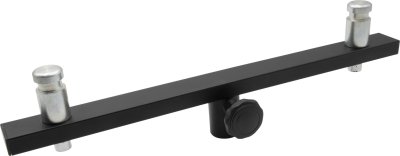

1172640086
Crossbar CB 50 for ST 410

All products are subject to technical changes
